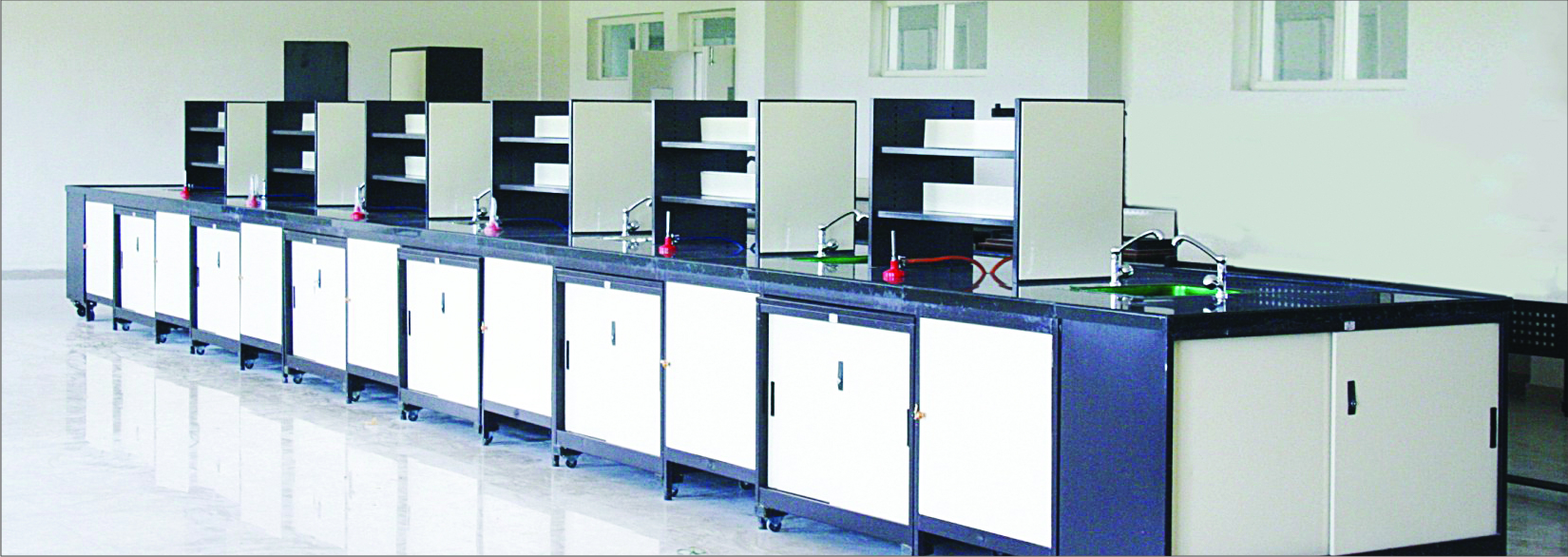

Lab Table With Bottle Rack:-
Height: 900mm, Width:1200mm, Depth:1200mm.
The frame made of MS CRCA tube. Fabrication involves only MIG welding process.
Top- Top made of black granite 17mm thk and black granite supported on fibber cement board 10 mm thk.
Understructure- The frame made of MS CRCA tube, vertical leg made of 25x25x18G(1.2mm), and horizontal tie member made of 25x50x18G(1.2mm).
Bottle Rack- Bottle Rack Structure over all size: Width-1000mm x Height- 600mm x Depth-150mm: Made up of prime quality MS CRCA sheet 0.8mm thk 3 fold press form side panel with dia 9mm holes in each panel throughout the height at 25mm pitch for adjustability of shelves.
Bottom Storage- Bottom storage over all size- w-1150mm x Ht 845mm x D450mm.made up of Prime quality MS CRCA sheet 0.8mm thk. One adjustable self creating two compartment. Doors with top hung sliding mechanism, slides on PVC rollers.
Other Provision- Provision for two Gas Burner, one in each side With connection. Each unit having provision for Drain pipe PVC fittings for inlet & outlet. Provision is for whole length of our product only. Electric, Light and other arrangements are optional.
Levellers- 4 nos of flat type leveller has been provided at bottom for mentaining level. It also preventing scratches on floor & Product as well.
Construction- The product comes in knock-down conditional for ease of transportation.
