Leisure –

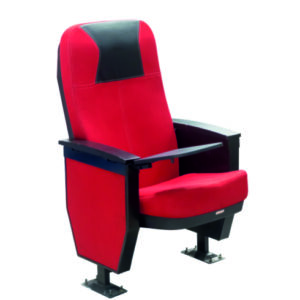

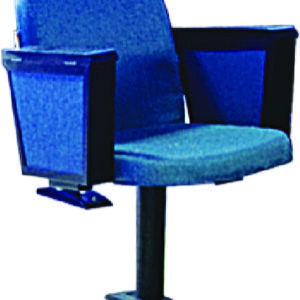

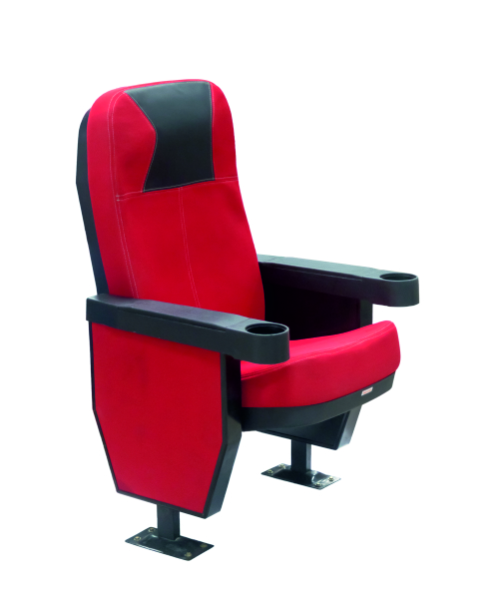

Seats Description:- Push back chair or Fixed Back chair. Auto Tip-up cushion. Sliding mechanism – .
Arm-rest to Arm-rest (center dist.): 21’’to 24’’ (inches). PPCP-injection molded Housing for Cushion & Backrest.
Fabric:- Approved from our existing range of fabric. 3mm lamination on fabric.
Frame:- Frame of ERW Round Tube.
Cushion Frame – 19 dia 1.2mm thick, Back Rest – 16 dia 1.63 mm thick.
Wing Components:- HRPO Sheet Metal. Wing frame “C” Channel. Channel 2MM Thick X 60mm Width. Rectangular Tube. Side wing frame with With fabric upholstered plywood.
Back & Cushion Housing:- Material: PPCP (Injection Molded).
Arm-rest:- Integral skin PU with water Fall Edges /PPCP Injection Molded with Integral skin PU / Wooden.
Slider Mechanism:- Sliding mechanism Will have travel of max 60mm forward.
Seat Dimension:- Cushion Height – 450. Back Rest Height – 1030 . After Push Back Dimension – 920 . Normal Dimension – 750 . .
