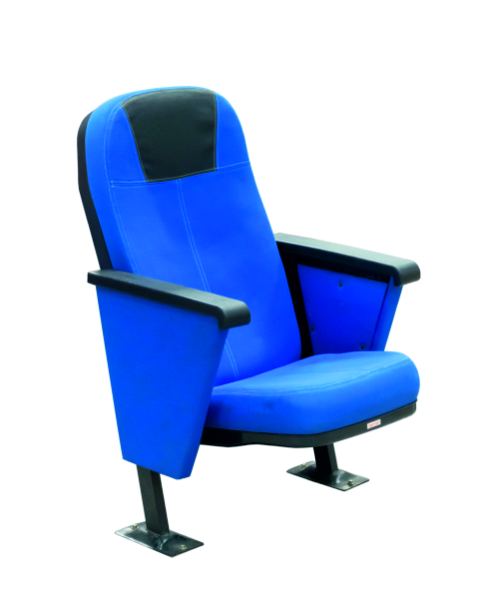

Stunner –
Seats Description- Push back chair or Fixed Back chair. Auto Tip-up cushion. Row numbering for seats along the aisles . Provision for lights on sides for seats along the aisles. Integral Skin Armrest/PPCP /Wooden..
Fabric:- Approved from our existing range of fabric. 3mm lamination on fabric.
Frame:- Frame of ERW Round Tube. Cushion Frame – 19 dia 1.2mm thick, Back Rest – 16 dia 1.63 mm thick, S Spring.
Wing Components:- HRPO Sheet Metal. Wing frame : Rectangular Style. ERW Square tube 25X25 1.63mm Thick. Side wing frame with With fabric upholstered plywood.
Back & Cushion Housing:- Material: PPCP (Injection Molded). Back Rest – PPCP BLACK 2.3mm thick. Cushion – PPCP BLACK 2mm thick.
Arm-rest:- Integral skin PU with water Fall Edges /PPCP Injection Molded with Integral skin PU / Wooden.
Slider Mechanism:- Sliding mechanism Will have travel of max 60mm forward.
Seat Dimension:- Cushion Height – 440 . Back Rest Height – 1030 . After Push Back Dimension – 920 . Normal Dimension – 750 .
Installation Hardware:- RCC Flooring 4 Inch – Anchor Fastener M8X100mmL. Sleve Dia 14mmWith 30mmL (2 Nos). Wooden Flooring 2 Inch – Coach Bolt for M8X40/50 (2 Nos).
